Home >> solid corner cbn inserts, thoroughly brazed pcbn inserts

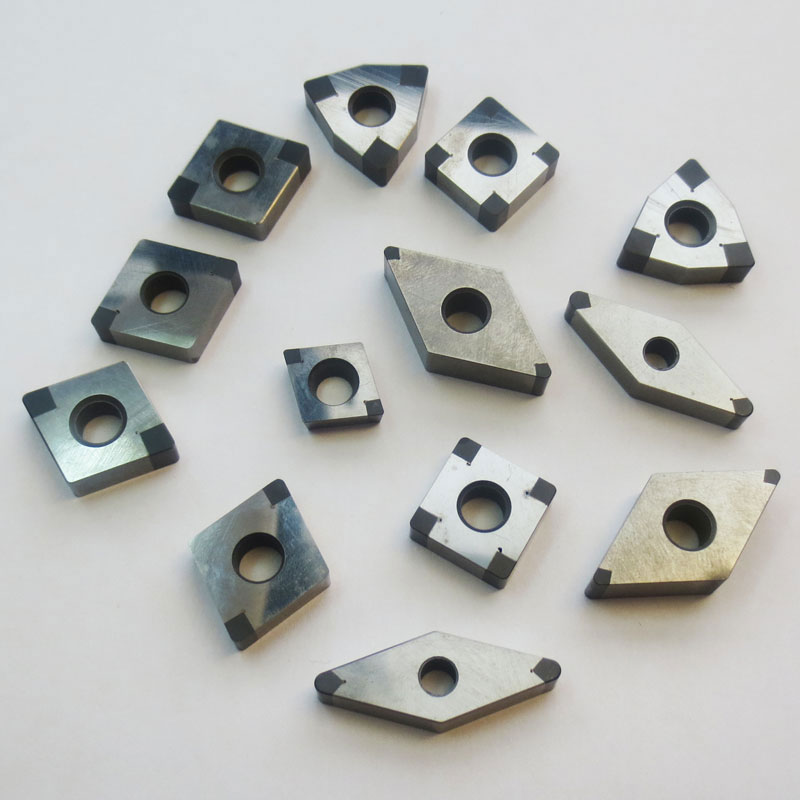

solid corner cbn inserts, thoroughly brazed pcbn inserts

Using the right materials in the science and technology world is a sure way of achieving great outcomes and utmost excellence that helps in creating the right connections and joints in brazed cbns. They are termed as one of the most top quality and high class materials that offer the best outcome with excellence and well improved services. The insert types are usually available and they come with pin lock holes that offer easy clamping and ensure the tool holders are capable of working skillfully and excellently. These solid corner pcbn inserts are usually made to last and offer the right support for a longer period of time. They are given that durability nature because they are made of tungsten carbide base with cutting edges that are brazed, could be an alternative to solid cbn inserts for hard metal machining in some cases. solid corner cbn inserts have good heat absorption capacity, superior solderability and resistance to soldering heat, but solid corner thoroughly brazed cbn inserts have better impact resisrance, mainly for interrupted and heavy interrupted machining. each solid corner equals to two cutting edges when comparing with the tipped cbn inserts, one solid brazed cbn corner means two working tips on both sides.

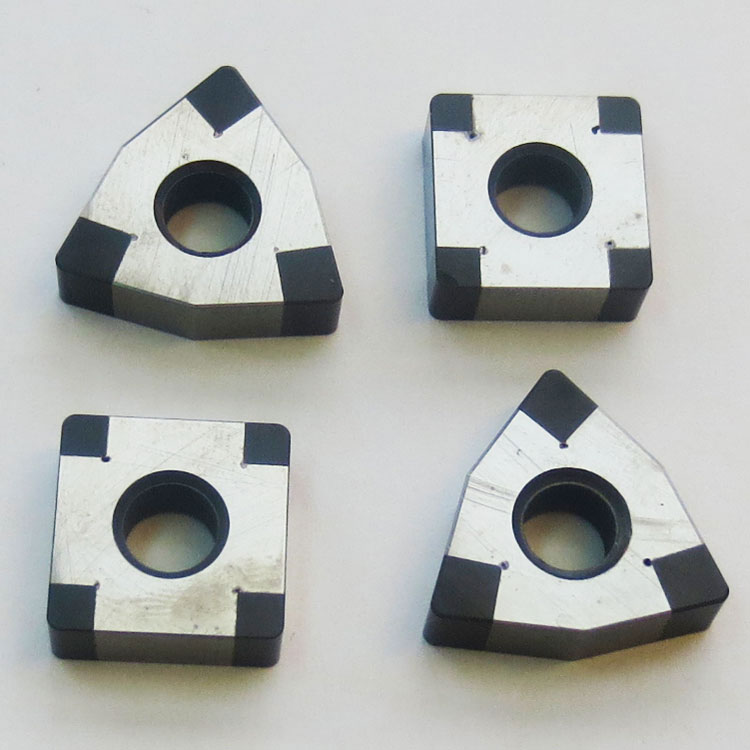

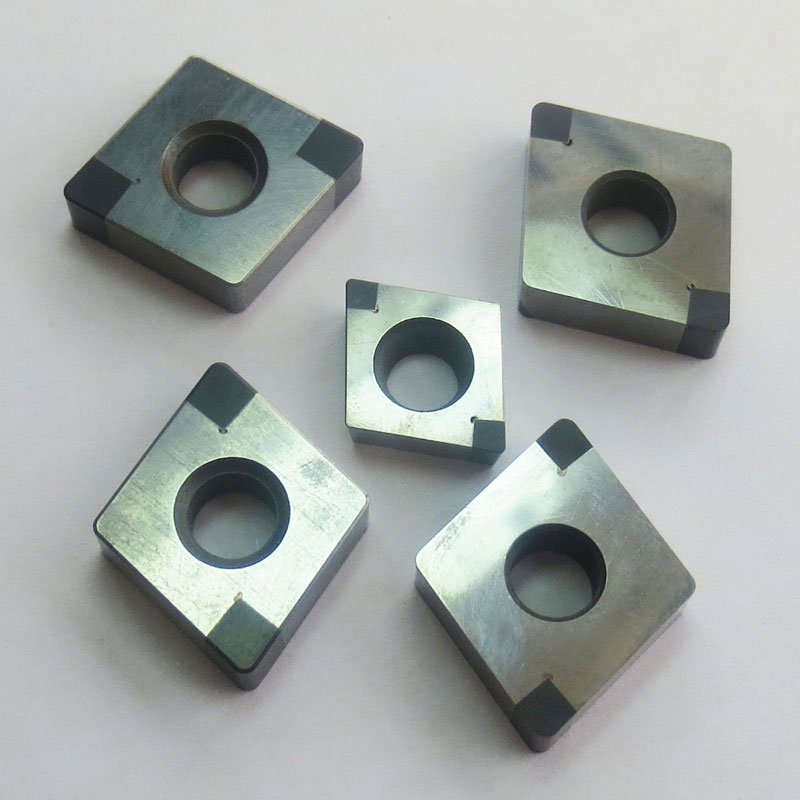

CNGA1204 solid corner cbn inserts SNGA1204 solid corner cbn inserts TNGA solid corner cbn inserts WNGA solid corner cbn inserts TCGW16T3 solid corner cbn inserts

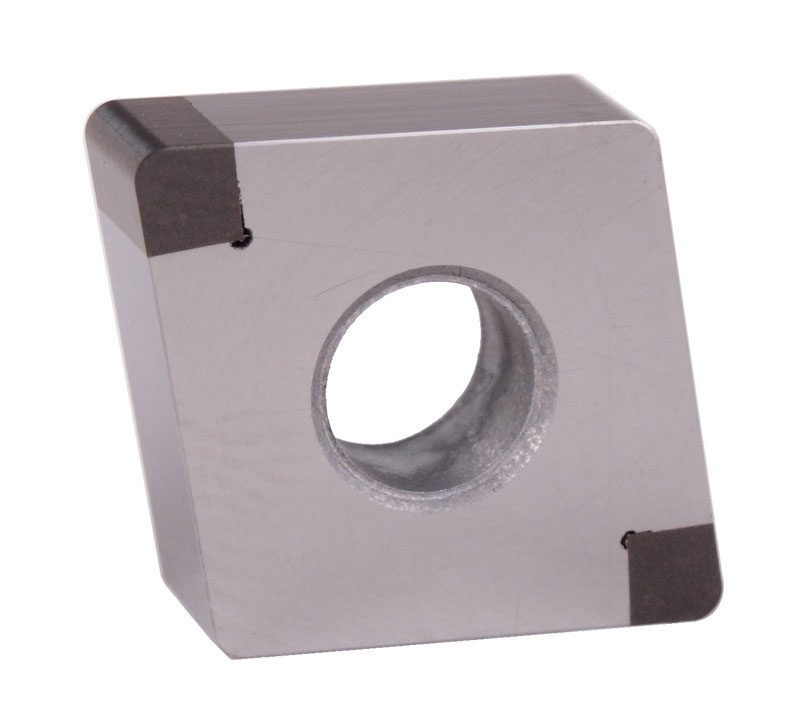

CNGA1204
solid corner cbn insert

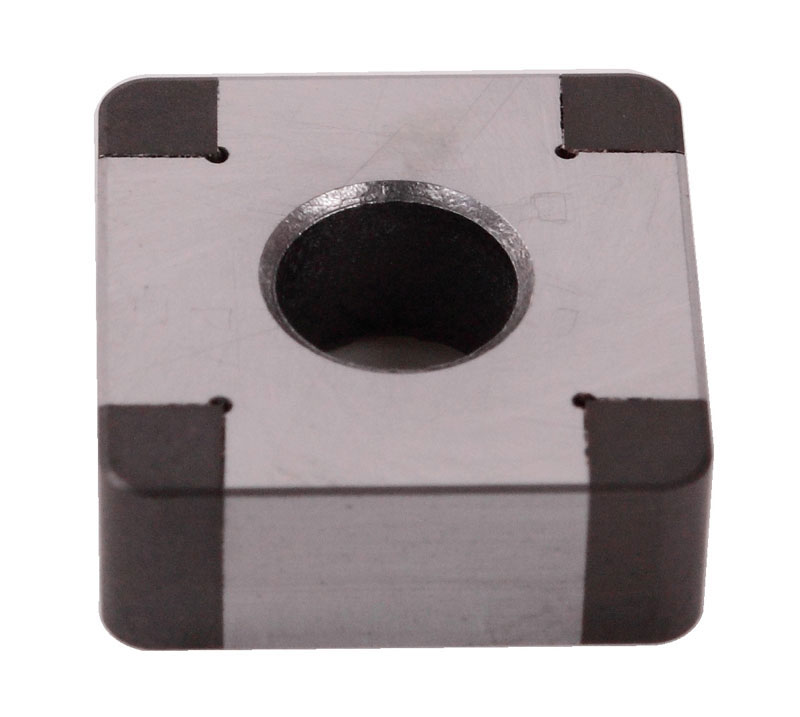

SNGA1204
solid corner cbn insert

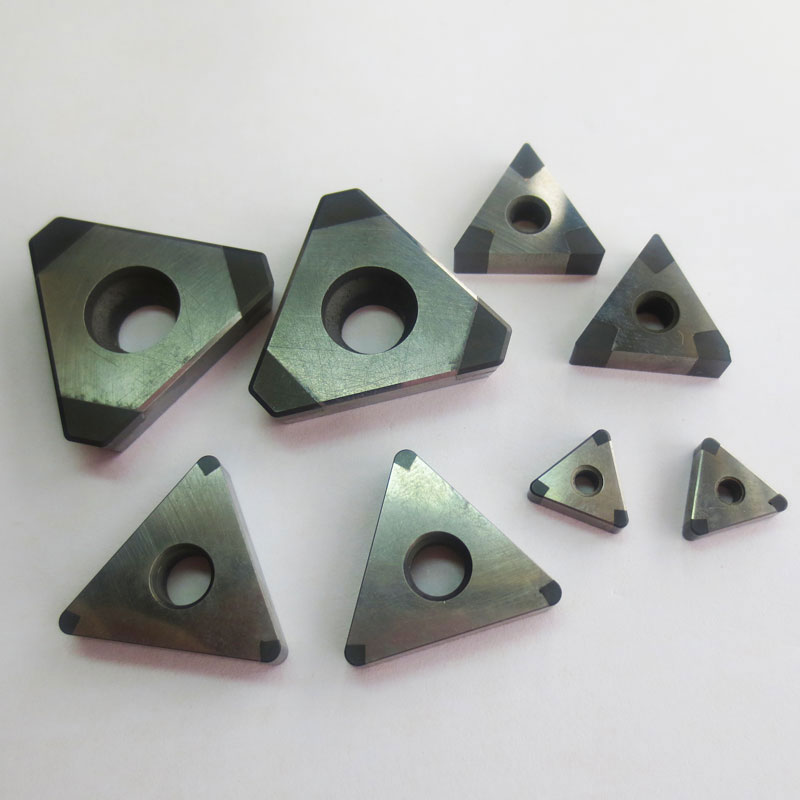

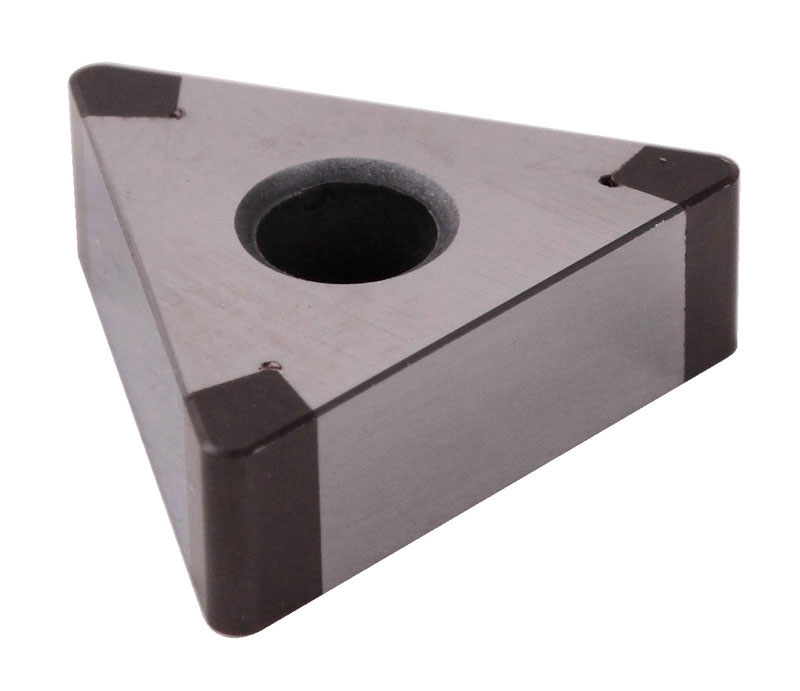

TNGA1604
TNGA2204

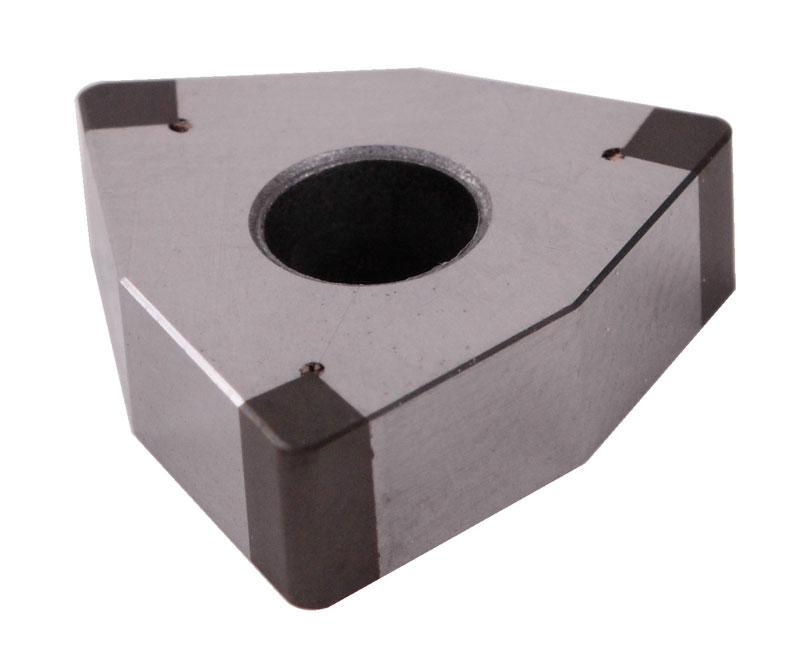

WNGA0604
WNGA0804

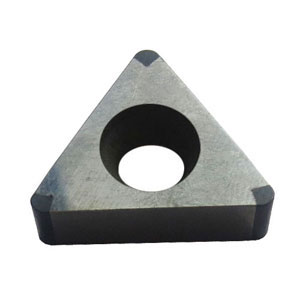

TCGW16T3
solid corner cbn insert

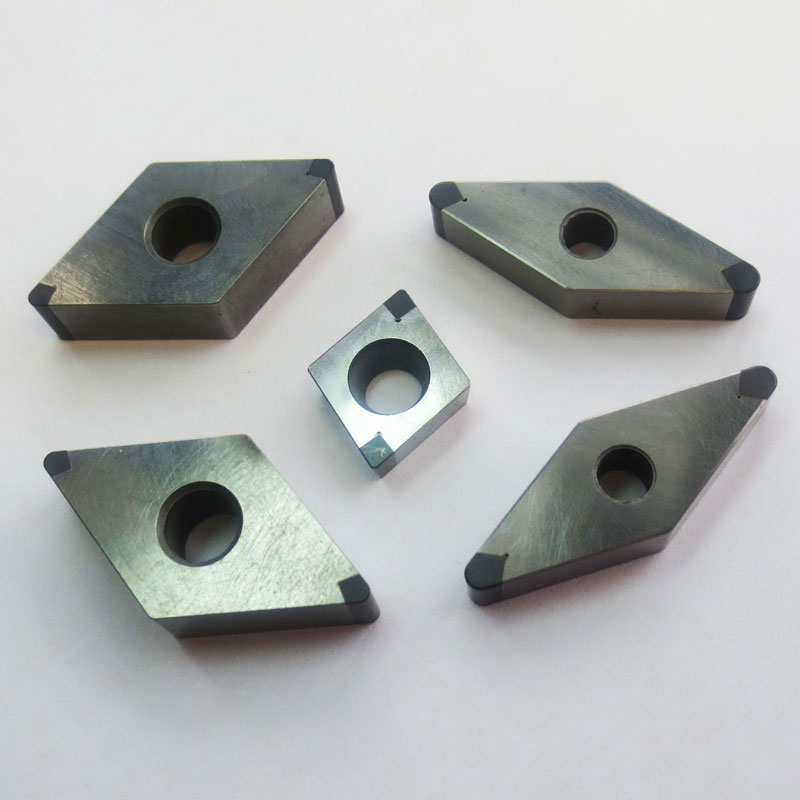

DNGA solid corner cbn inserts SCGW09T3 solid corner cbn inserts SNGA1204 solid corner cbn inserts VNGA solid corner cbn inserts TCGW solid corner cbn inserts

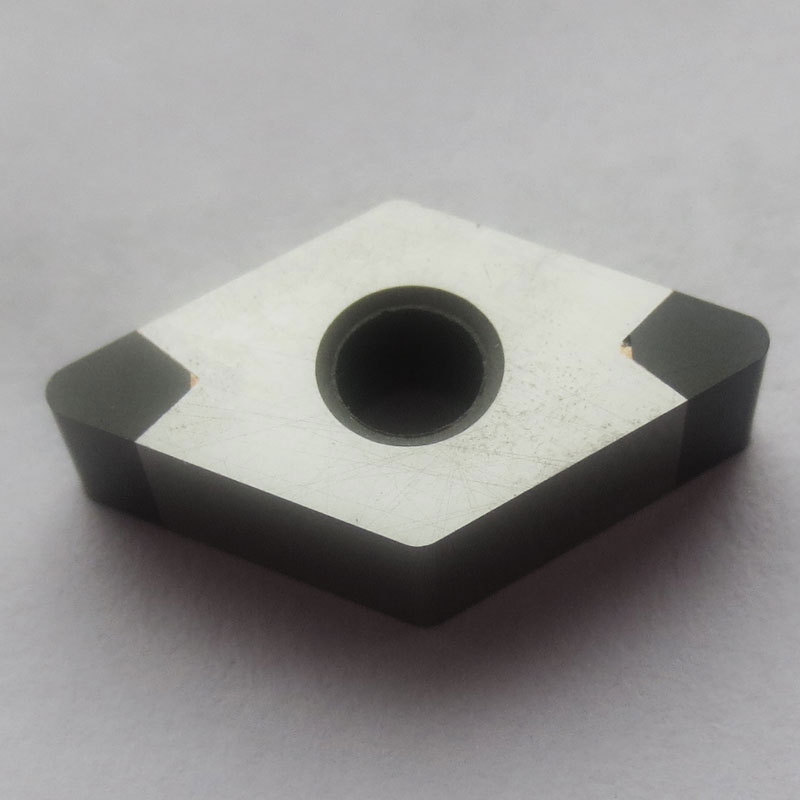

DNGA1104
DNGA1504
DNGA1506

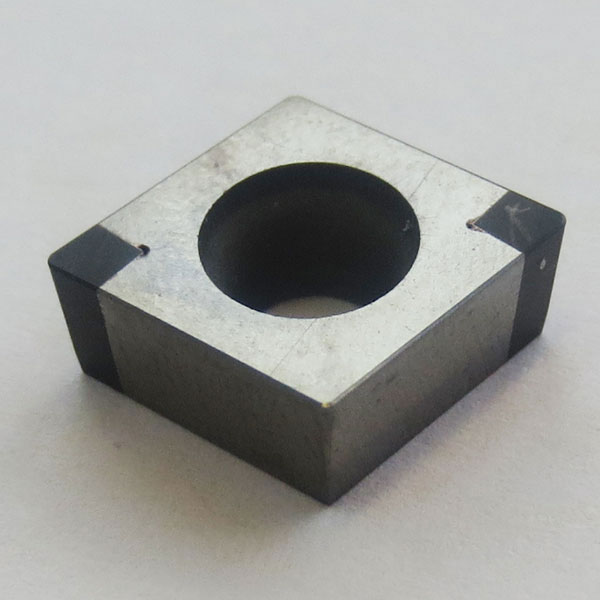

SCGW09T3
solid corner cbn insert
SNGA1204
solid corner cbn insert
VNGA
solid corner cbn insert
TCGW
solid corner cbn insert

Challenging metals are crucial to the advancing industrialization happening in the world. Some of these difficult metals are the following: super alloys that are resistant to heat, fully hardened steels, bimetals, and hard powder metals. These metals are known to be close to being indestructible but they are difficult to shape to its final form with a reasonable cost to consider. This is what pushes a number of cutting tool manufacturers to come up with advanced type of inserts that can mill and turn such difficult to shape materials. Such companies came up with polycrystalline cubic boron nitride (PCBN), polycrystalline diamond (PCD), and coated carbide inserts. These materials are created with special geometrical considerations and coatings that enable them to survive mechanical shocks, resist abrasion, and also intense heat.

solid corner cbn insert solid corner cbn insert solid corner cbn insert
solid corner cbn turning inserts solid corner cbn turning inserts solid corner cbn turning inserts
solid corner cbn insert solid corner cbn insert
solid corner cbn turning inserts solid corner cbn turning inserts

There is much more that is usually offered to solid corner brazed cbn inserts for CNC turning cast iron. Through this quality perfection and use of professionalism, the materials are seen as one of the most perfect and valuable makes that are easy to use and those that offers utmost excellence and higher degrees of simplicity. They are well known for their good heat absorption abilities. This is because their capacities are the perfect ones made to last. The materials are superior and at the same time highly resistant to solder heating. This makes them to be the most highly valuable makes in the current times and through the combinations of their great capability they are the best that can be used in industries. They are perfect, easily fit with no hassle and are well developed to ensure that their performance is of high class. The brazed inserts are widely praised and known for their resistance to extreme impact. They are highly used by heavy machines and they offer the utmost quality outcomes with no doubt. Every of these well brazed solid corners come with great finishing and this is a benefit because they offer the perfect outcome working as well developed makes. Superabrasive pcbn inserts are normally used in some of the developed as well as developing countries, in United States (US), United Kingdom (UK), Germany, Russia, Turkey. They are known for their quality outcomes and the cutting edges which are offered the most valuable and perfect braced features to ensure that their outcome is excellent. In the modern times, they are highly recommended and one of the best materials that works excellently all the times and those that can serve for many years and still offer the same outcome. A comparison of the swift pcbn inserts and other conventional material means that they are highly valuable. The pcbn turning inserts are highly appreciated and the best ones because of their long cutting life while still maintaining high speed and other increased efficiencies that offers utmost perfection and quality outcome. The machines are the best and they are usually preferred because of their resistance to wears and their ever present sharp cutting edge.

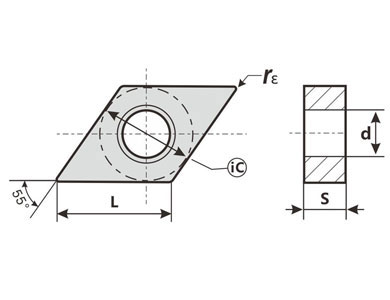

ISO numerical code Cutting edge length
(L)
Inscribed circle
(i.C)
Thickness
(S)
hole diameter
(d)
Nose radius
(rε)
Cutting edge preparation RBS700 RBS710 RBS720 RBS930

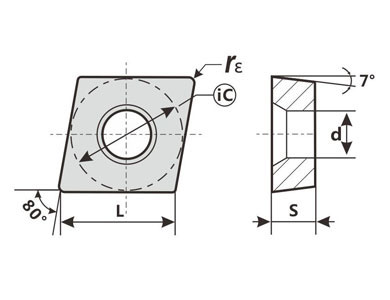

CCGW cbn insertsCCGW
CCGW09T304 9.7 9.525 3.97 4.4/6 0.4 T01020
T02020
S01020
S02020
CCGW09T308 9.7 9.525 3.97 4.4/6 0.8
CCGW09T312 9.7 9.525 3.97 4.4/6 1.2
CCGW120404 12.9 12.7 4.76 5.5/7.5 0.8
CCGW120408 12.9 12.7 4.76 5.5/7.5 1.2
CCGW120412 12.9 12.7 4.76 5.5/7.5 0.8

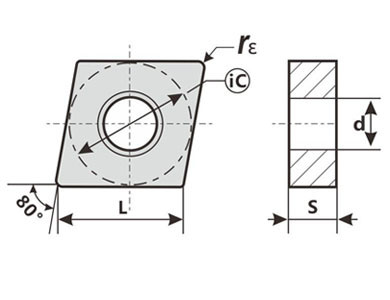

CNGA1204CNGA
CNGA120404 12.9 12.7 4.76 5.16 0.4 T01020
T02020
S01020
S02020
CNGA120408 12.9 12.7 4.76 5.16 0.8
CNGA120412 12.9 12.7 4.76 5.16 1.2
TCGW16T3TCGW16T3
TCGW06T304 16.5 9.525 3.97 2.5/6 0.4 S01020
TCGW06T308 16.5 9.525 3.97 2.5/6 0.8
TCGW06T312 16.5 9.525 3.97 2.5/6 1.2
DNGA cbn insertsDNGA
DNGA110404 11.6 9.525 4.76 3.81 0.4 T01020
T02020
S01020
S02020
DNGA110408 11.6 9.525 4.76 3.81 0.8
DNGA110412 11.6 9.525 4.76 3.81 1.2
DNGA150404 15.5 12.7 4.76 5.16 0.4
DNGA150408 15.5 12.7 4.76 5.16 0.8
DNGA150412 15.5 12.7 4.76 5.16 1.2
DNGA150604 15.5 12.7 6.35 5.16 0.4
DNGA150608 15.5 12.7 6.35 5.16 0.8
DNGA150612 15.5 12.7 6.35 5.16 1.2

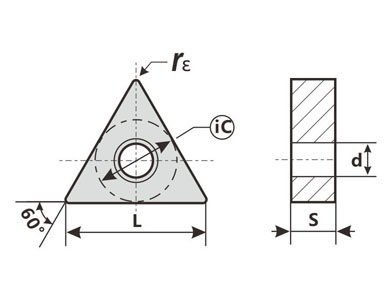

TNGATNGA
TNGA160404 16.5 9.525 4.76 3.81 0.4 T01020
T02020
S01020
S02020
TNGA160408 16.5 9.525 4.76 3.81 0.8
TNGA160412 16.5 9.525 4.76 3.81 1.2
TNGA220404 22 12.7 4.76 5.16 0.4
TNGA220408 22 12.7 4.76 5.16 0.8
TNGA220412 22 12.7 4.76 5.16 1.2
TNGA220416 22 12.7 4.76 5.16 1.6

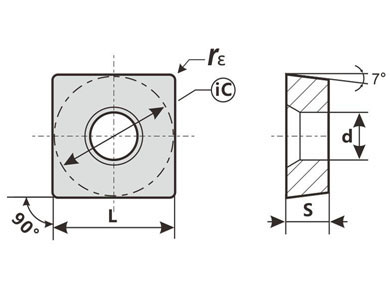

SCGW09T3SCGW09T3
SCGW09T304 9.7 9.525 3.97 4.4/6 0.4 T01020
T02020
S01020
S02020
SCGW09T308 9.7 9.525 3.97 4.4/6 0.8
SCGW09T312 9.7 9.525 3.97 4.4/6 1.2

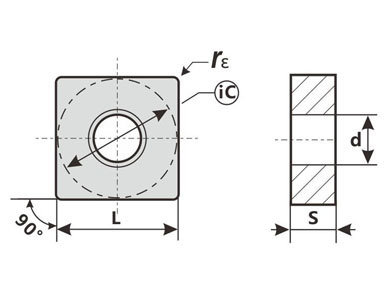

SNGA1204SNGA1204
SNGA120404 12.7 12.7 4.76 5.16 0.4 T01020
T02020
S01020
S02020
SNGA120408 12.7 12.7 4.76 5.16 0.8
SNGA120412 12.7 12.7 4.76 5.16 1.2

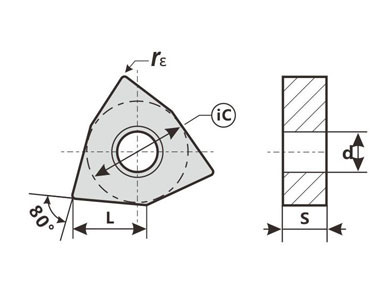

WNGAWNGA
WNGA060404 6.5 9.525 4.76 3.81 0.4 T01020
T02020
S01020
S02020
WNGA060408 6.5 9.525 4.76 3.81 0.8
WNGA060412 6.5 9.525 4.76 3.81 1.2
WNGA080404 8.7 12.7 4.76 5.16 0.4
WNGA080408 8.7 12.7 4.76 5.16 0.8
WNGA080412 8.7 12.7 4.76 5.16 1.2


They have the right dimensions and roughness. This makes sure that they are accurate and that they can always perform with no failures. They are highly suitable for a number of reasons. This offers them one of the most quality functionalities. They are highly suitable for the grey cast iron, and in finishing other heat treated nodular cast irons. The tools are known for their continuous high class performance in cutting any of the hardened steel and performing the task simply and very effectively without any failures. The uncoated pcbn is usually much suitable for small pieces and this is a great benefit since it is good for small pieces and other high speed hardened steel. They also work on top speed and their result is so perfect. The brazed cbn cutting edge stands out as one of the most important quality and perfect makes in the current generation. They outdo many others due to their brazed nature. It is easier to manage and perfectly offers the best outcome. The solid corner cbn inserts for CNC turning cast iron are great in the market. It is through their professional services and many of their important features that they have been used and continues to get a lot of positive remarks. They are good and they offer quality outcome all the time.
